Balancing Testing Machine

BALANCING MACHINE

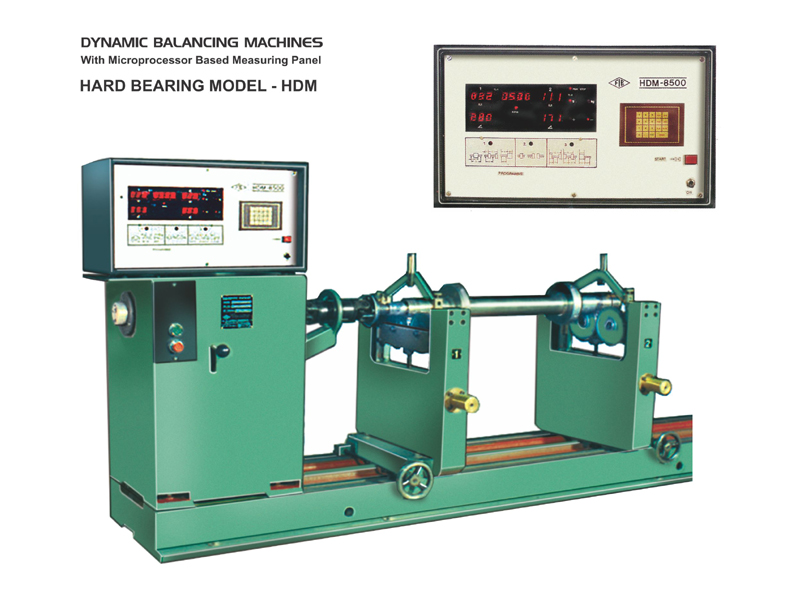

Model: Horizontal Balancing Machine – Model - HDM

Features

Fine Engineering Services is one of the leading supplier of balancing testing machines in Chennai who have strong technical exposure in services of all types of testing machines and hardness tester machines and also one of the leading supplier of material testing machines in Chennai.

  • Digital display for unbalance indication Amount and angle for unbalance for both planes displayed on separate DPMS. Hence linear accuracy is very good as compared to Analog meter. Accuracy ±1 Digit for amount and ±1 Degree for angle.
  • Digital display for RPM indication A DPM is provided to indicate balancing speed continuously as a standard feature.
  • Auto Stop No necessary to stop machine once started. It stops automatically after stabilization of unbalance results.
  • Simultaneous Indication Amount and Angle of unbalance in both planes displayed simultaneously and remains displayed (Stored) till next run. This totally eliminates operation of plane selector and reduces additional time for stabilization of readings in other plane.
  • Key-board Data of rotor dimensions and balancing tolerance i.e. values of A, B, C, R1, R2, tl1, tl2, are fed by key operation. Hence accuracy of data feedings accurate upto 1digit.

  • Tolerance Indicators Separate LEDS are provided for both planes which glow when unbalance is reduced within balancing tolerance.
  • Auto-range Depending upon whether unbalance amount is more or less a respective course or fine range gets automatically selected till rotor gets balanced within tolerance limits. Multiplier operation is totally eliminated.
  • Data Store Data of various rotors can be stored against respective rotor type nos. Hence no need of measuring of rotor dimensions or rotor data feeding when repeat balancing operation required. Just call rotor type no. and machine is ready for balancing.
  • Self Check Panel is provided with “Self-Check” mode which checks proper functioning of digital displays, LEDs is cyclic operation. This helps immediate fault detection.
