Impact Testing Machine

IMPACT TESTING MACHINE

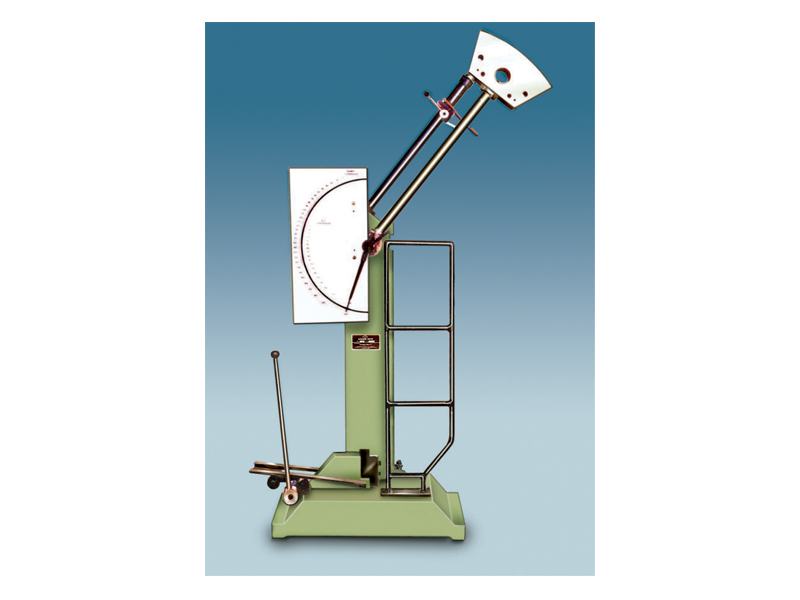

Model: IZOD and Charpy Impact Testing Machine

GENERAL DESCRIPTION:

Fine Engineering Services is one of the leading supplier of impact testing machines in Chennai who have strong technical exposure in services of all types of testing machines and hardness tester machines and also one of the leading supplier of material testing machines in Chennai.

The Pendulum Impact Tester, Model IT-30 is designed for conducting Izod, Charpy test. The test methods confirms to BS:131:PART 4-1972 (Amended 15 Aug. 1993) BSEN:10045-2:1993.

The pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy, the lower one for Izod testing. On release, the pendulum swings down to break the specimen & the energy absorbed in doing so is measured as the difference between the height of drop before rupture of the test specimen and is read from the maximum pointer position on the dial scale.

(It is read on digital readout in case of electronic machines.)

There are two strikers and one combined support anvil available for fitting in to the pendulum and on the base of machine for the Izod, Charpy test respectively. Changing from one striker to another is achieved simply by fixing the new striker into it's position
